Body wiring harness

Moderator: Founder

Body wiring harness

Postby danielle.garcia » 03 May 2011, 10:54

dose anyone know the nsn for a body wiring harness for a m1097a2 the uoc is bvy, i can't find it in the tm. i've found every other harness but not this one. dose anyone know if the m1097 is the same as the A2? they have differnt uoc .
danielle.garcia

Posts: 4
Joined: 24 Feb 2011, 13:14

Re: Body wiring harness

Postby WRECKERMAN » 03 May 2011, 12:48

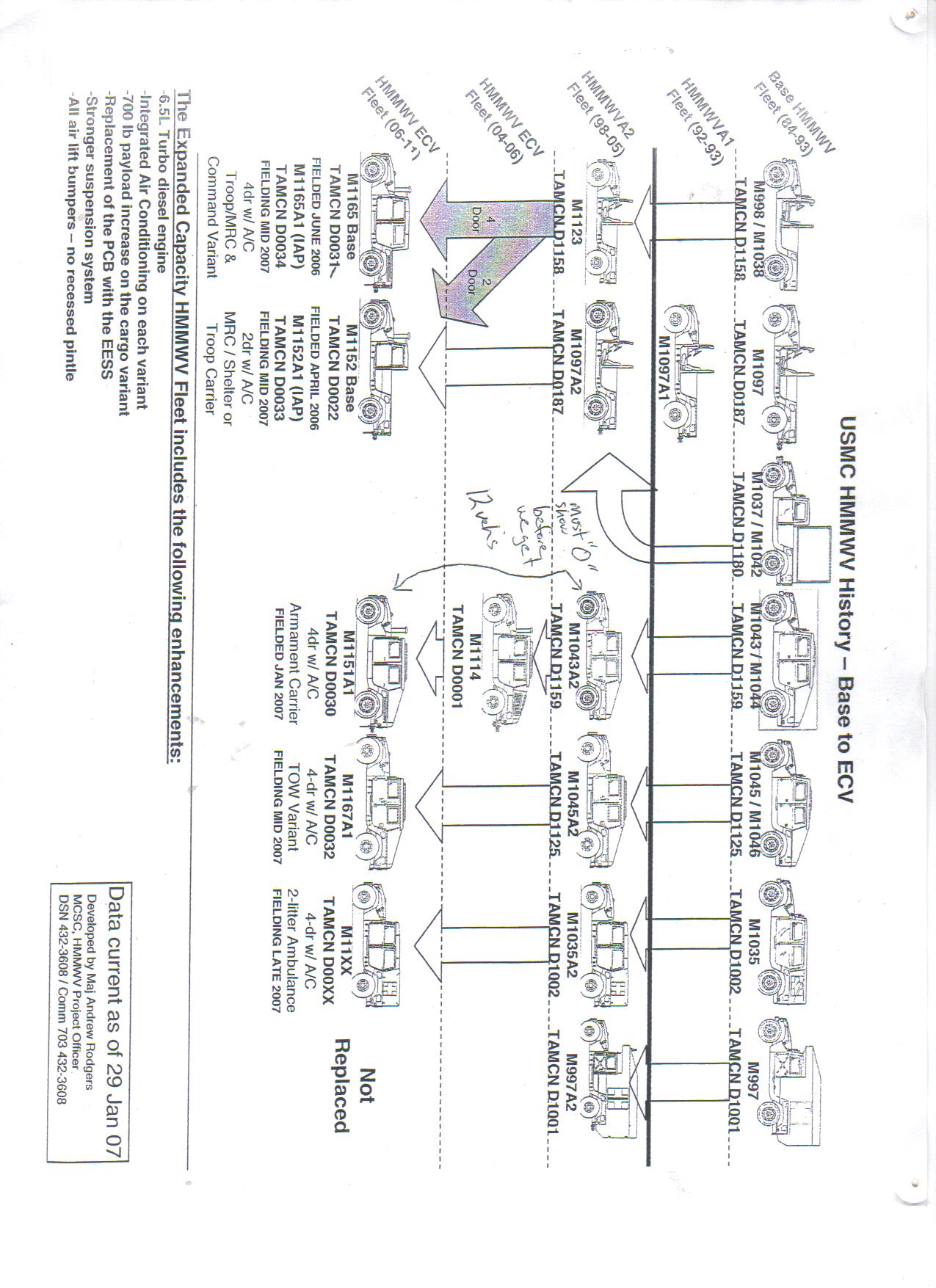

I am not exactly sure on the exact differences of the A1 and A2. I am not sure if the major differences are like M998 to M1123 or what because there is the 1097, 1097a1, and A2. Does your truck have any kind of kit on it or anything. This is a interesting one. I attached something that might help if not with this question possibly with others and i will keep looking.

HPM M1097 W/W and L119 Prime Mover Kit
SLT M1097 W/W and S250 Shelter Kit
KTV M1097 W/W and Towed Vulcan System Kit
Attachments
HMMWV History 001.jpg
(278.42 KiB) Downloaded 1213 times
WRECKERMAN
Site Founder
Site Founder

Posts: 118
Joined: 02 Jun 2010, 16:41

Re: Body wiring harness

Postby SUPERMOD » 03 May 2011, 13:01

Still looking. If anyone esle knows it or finds it before me, be sure to post.
SuperMod
3521/0411/0916

"IF YOU DONT LIVE FOR SOMETHING, YOU DIE FOR NOTHING"
User avatar
SUPERMOD
Site Founder
Site Founder

Posts: 922
Joined: 02 Jun 2010, 16:33
Location: Camp Pendleton, Ca

Re: Body wiring harness

Postby danielle.garcia » 03 May 2011, 14:02

Its like the m1042 , its the Mrq. the only differences i found are the pay load i been stuck on this for a few days now. thank you
danielle.garcia

Posts: 4
Joined: 24 Feb 2011, 13:14

Re: Body wiring harness

Postby Petz » 24 Feb 2012, 15:57

The new ECV wiring harness will work on all M1123 variants with one wire being capped off for the horn. 1123's are two wire while the ecv is three. look in the 11033-OR and you'll get what you need.
Petz
It's Already Fixed

Posts: 283
Joined: 01 Jan 2011, 05:43
Location: Camp Kinser, JP

Re: Body wiring harness

Postby shewbie3 » 24 Jul 2013, 09:39

Petz is correct, the harness will work. Although it isn't in the 11033-OR, its is 11033-INP W/CH 1-2
User avatar
shewbie3
Know it All
Know it All

Posts: 30
Joined: 08 Feb 2013, 08:34

Re: Body wiring harness

Postby shortjdhs » 19 Dec 2013, 14:28

i tried looking for the whole assembly for the body wiring harness but all the tm is showing are individual parts for it. if anone has the niin for the whole assembly id be a happy dude.
shortjdhs

Posts: 1
Joined: 31 Oct 2013, 19:34

Re: Body wiring harness

Postby shewbie3 » 09 Apr 2014, 12:47

Look in TM 11033-INP W/CH 1-2.

fig. 76
item# 1
NIIN- 014323582
User avatar
shewbie3
Know it All
Know it All

Posts: 30
Joined: 08 Feb 2013, 08:34

Re: Body wiring harness

Postby Petz » 26 Jul 2014, 12:37

wow, did I really type -OR? I must have been in a hurry...
Petz
It's Already Fixed

Posts: 283
Joined: 01 Jan 2011, 05:43
Location: Camp Kinser, JP
